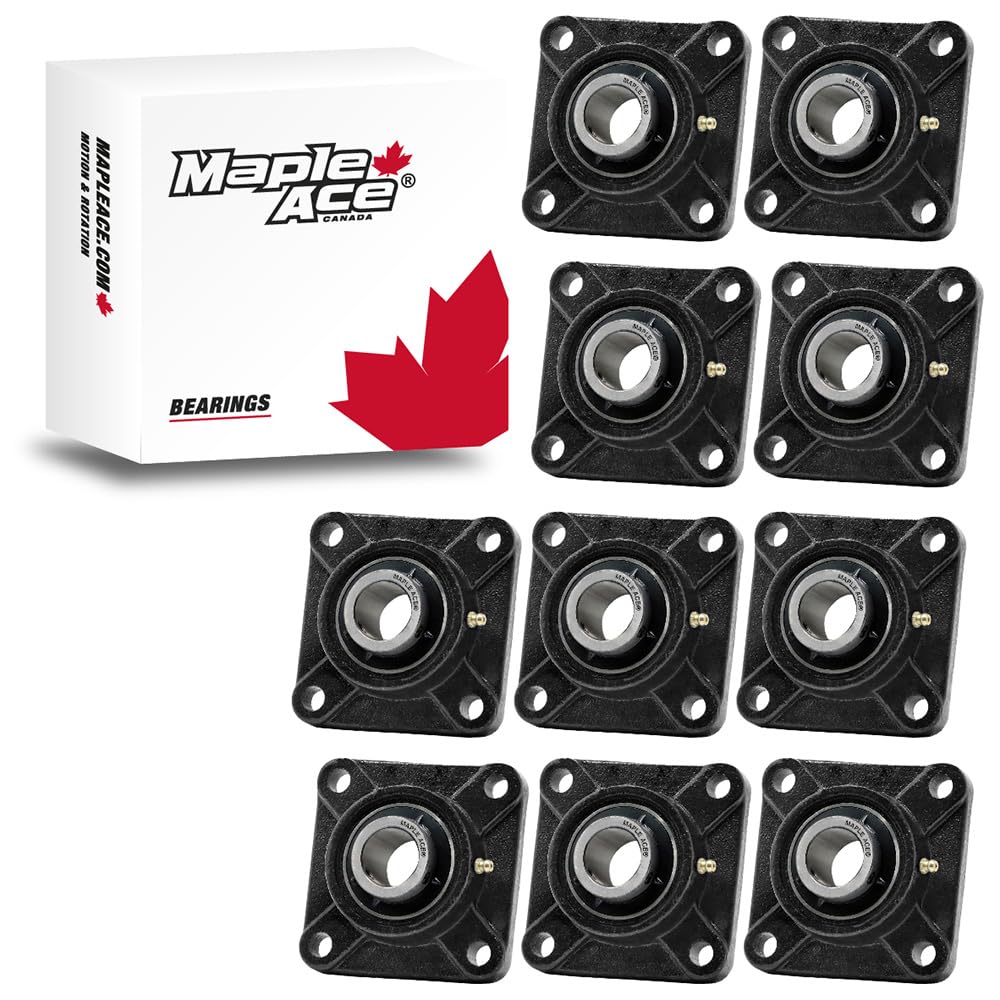

MAPLE ACE UCF204-12 Square Flange Bearing 3/4" Bore, 4-Bolt Self-Aligning, Solid Base, Heavy Duty (Qty 10)

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF204-12, Series UCF200, Bearing Number UC204-12, Housing Number F204, Number of Bolts 4, Bolt Size (S) 3/8 in, Bearing Bore Diameter (d) Metric 19.05 mm, Bearing Bore Diameter (d) Inch 3/4 in, Bearing Width Inner Ring (Bi) Matric 31.00 mm, Bearing Width Inner Ring (Bi) Inch 1.220 in, Bolt Hole Center to Center (e) Matric 64 mm, Bolt Hole Center to Center (e) Inch 2.519 in, Flange width (a) Matric 86 mm, Flange width (a) Inch 3.385 in, Overall Height (Z) Matric 33.3 mm, Overall Height (Z) Inch 1.311 in, Dynamic Load Rating Cr 12700 N, Static Load Rating Cor 6550 N, Limiting Speed 8500 r/min, Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 0.540 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
