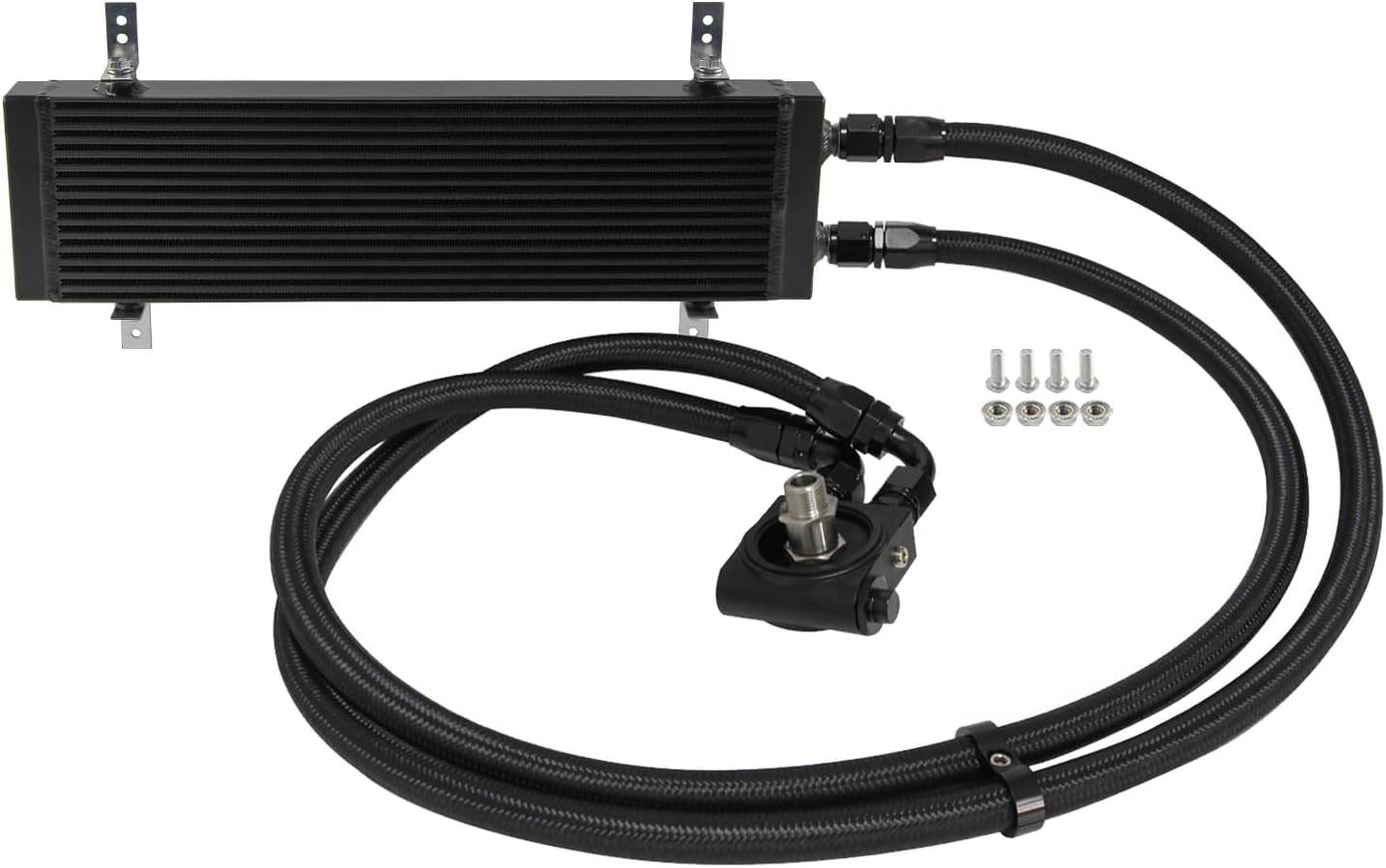

Large Dual Pass Bar & Plate Oil Cooler Thermostatic Filter Adapter Hose Kit Aluminum Black

Application: Universal (Please make sure the filter thread size is 3/4*16 or M20*1.5,Or it not suit) Description: 100% brand new, Never been tried or installed Made with super light weight high quality 6061 Aluminum The oil filter sandwich plate features a built in Thermostat, this keeps the oil cooler from circulating oil until the car is warm then the valve will open and allow oil to flow through the cooler. Equip with additional 1/8 NPT side ports allow for easy oil temperature, and pressure sensor insert. keep the engine oil temperature at about 73degrees C +/- 0.5 degree, this is the minimium temperature required to evaporate oil contaminants.. 2 oil lines ( 1.4m and 1.6m ) 1pcs aluminum thermostatic sandwich plate Installation accessories (The L-shaped bracket is a universal type. For different vehicles, additional connecting parts may be required.) No instructions included, Professional installation is highly recommended Inlet & Outlet Fitting: AN10 Oil filter fitting Thread = 3/4X16 UNF and M20XP1.5 Oil cooler 18.5"x5.5"x1.58" Core Large Durable Bar & Plate cooler design for use in custom applications M8x1.25 Welded bungs to use for attaching brackets 10AN fittings for attaching oil lines 100% aluminum construction with CNC endtanks Reduces oil temperatures with minimal pressure loss Fluid Capacity 0.80 qt Increased oil system capacity for increased cooling capability

• Universal Fitment： Universal fit for most vehicles, compatible with oil filter thread size 3/4"-16 UNF and M20×1.5. Please confirm the thread size before purchase; 100% brand new, never installed or tested for perfect cooling upgrade.
• Premium 6061 Aluminum Construction： Adopts high-strength lightweight 6061 aluminum material, bar & plate structure with 18.5"×5.5"×1.58" large core and CNC endtanks. Equipped with M8x1.25 welded bungs and AN10 inlet outlet fittings, features 0.80 qt fluid capacity, reduces oil temperature with minimal pressure loss and improves overall cooling capability.
• Thermostatic Temperature Control： Built-in thermostatic sandwich plate stabilizes engine oil temperature at 73°C ±0.5°C, meeting the standard temperature to evaporate oil contaminants. The thermostat stays closed when cold for quick warm-up and opens automatically for normal oil circulation after heating up.

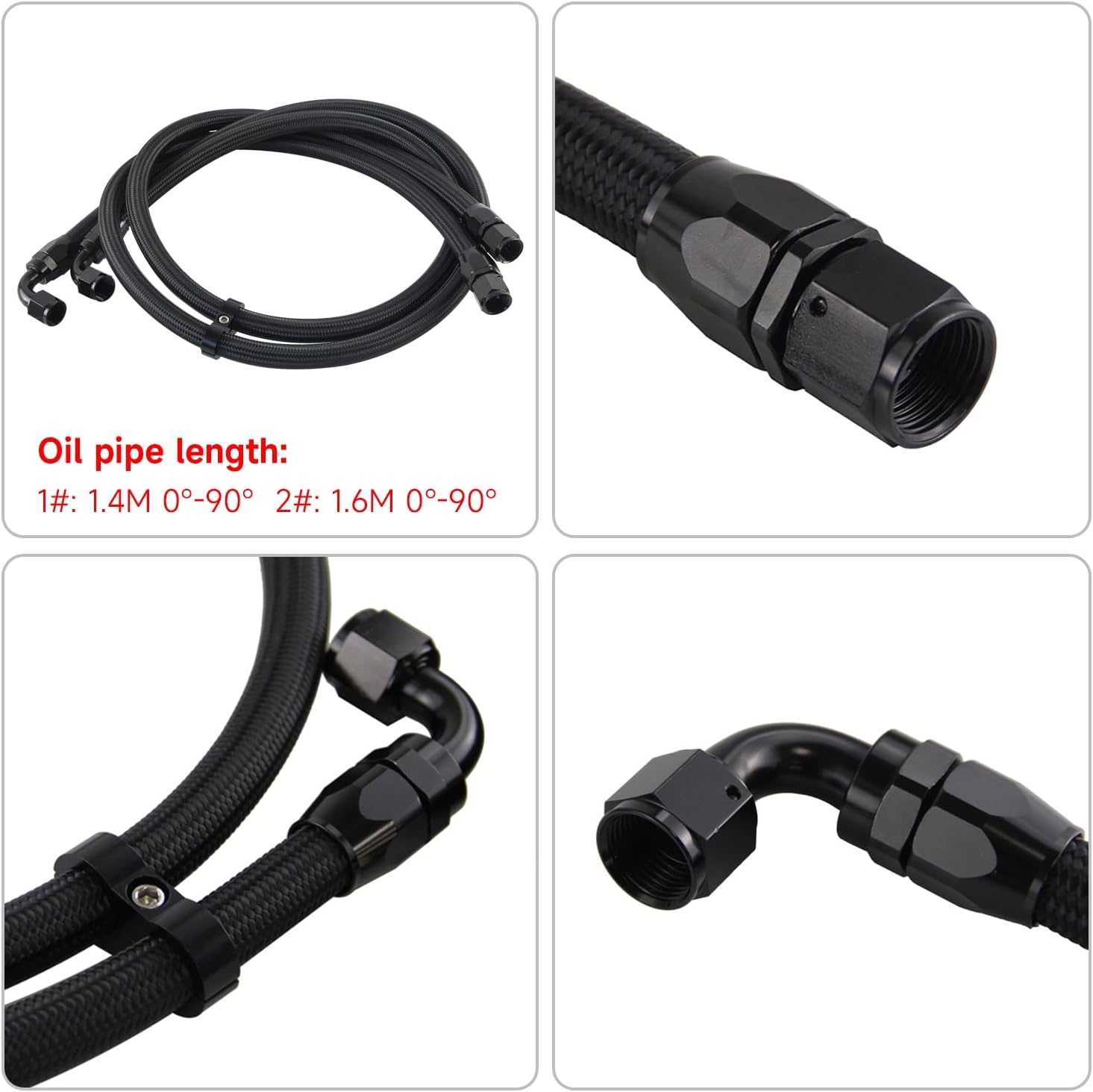

• Reserved NPT Sensor Ports： Designed with extra 1/8" NPT side ports, convenient for installing oil temperature and pressure sensors to monitor real-time oil condition. Comes with 1.4m & 1.6m AN10 oil lines and 1pc aluminum thermostatic sandwich plate to complete the whole modification set.
• Complete Kit & Installation Note： Includes full installation accessories and universal L-shaped bracket; extra connecting parts may be needed for different vehicle models. No installation instructions included, professional installation is highly recommended to ensure safe and leak-free operation.
