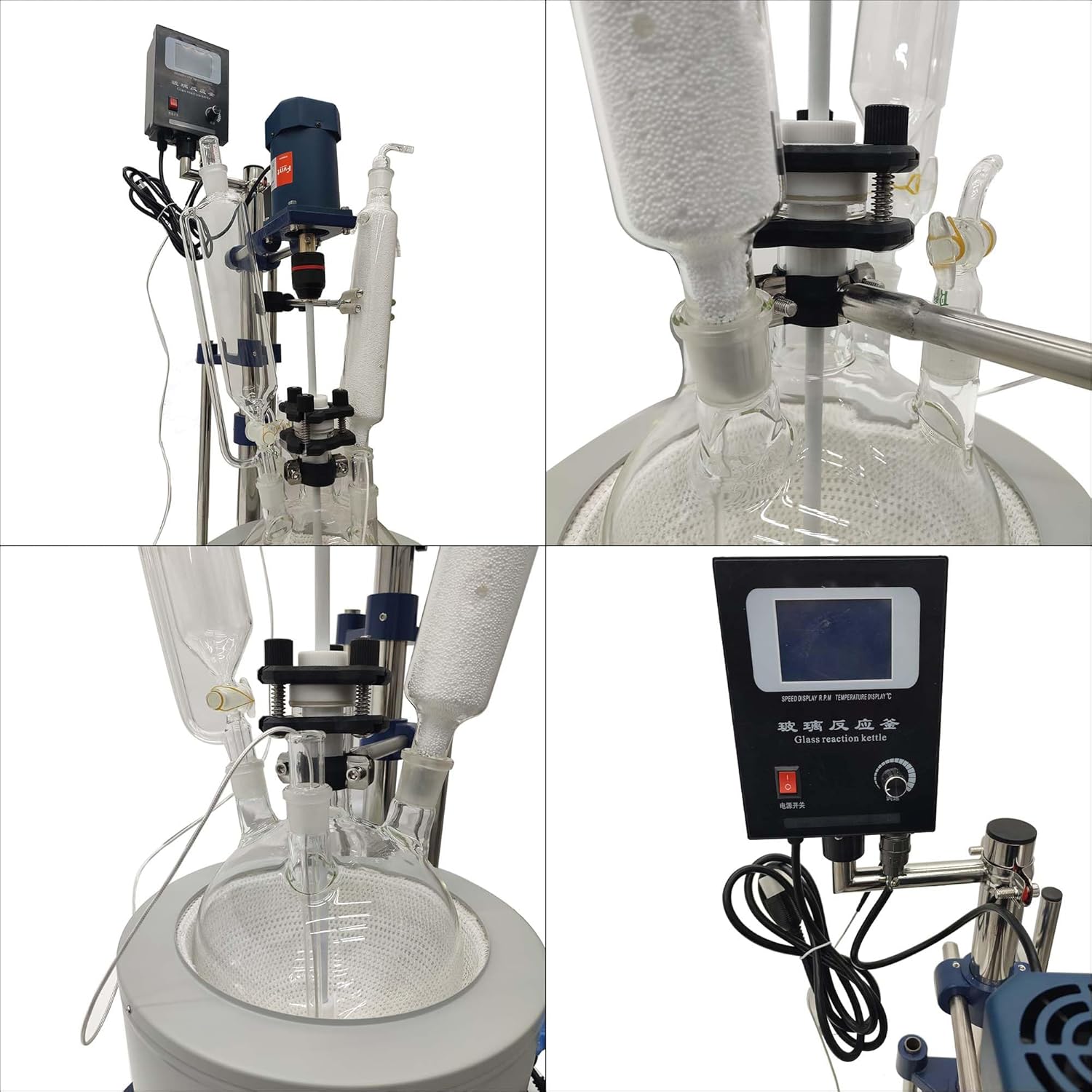

5L Jacketed Glass Reactor - 220V Single-Layer Chemical Lab Reaction Vessel with Digital Display, Adjustable Speed 0-600RPM & Stainless Steel Frame for Distillation and Experimentation

Parameters 1. High quality high borosilicate (GG-17) material, vertical rod and fixed frame for high quality 304 stainless steel material, with the advantages of corrosion resistance, rust resistance, resistance to various solvents. 2. Type: single layer spherical 3. Capacity: 5L 4. Motor power: 90W 5. Speed: electronic speed regulation 0-600 RPM 6. Power supply: 110V 7. The reactor can withstand temperature and working pressure: withstand temperature: -120℃----300℃ (the temperature can be digitally displayed on the controller) Withstand temperature difference: +/-40℃, withstand working pressure: normal pressure and negative pressure (-0.1MPa) The reactor is equipped with a solid feeding port, the bottom stirring without dead Angle, no liquid accumulation. Power supply: 110V Capacity: 5000ml Power rate: 1100W Temperature control accuracy: ±1℃, Temperature control mode: intelligent digital display, thyristor control, internal and external sensor temperature measurement Heating temperature: maximum surface temperature 380℃ Boiling: 50ml water 10-25 minutes Furnace wire: Cr20Ni80 Extreme edge layer: no alkali glass fiber, can withstand temperature 450 degrees Insulation factor: Dry ≥500 megabytes Thermal insulation layer: exclusive use of aluminum silicate cotton vacuum filter type environmental insulation body Safety tube: 5×20 15AItem Number: 220535

• High Quality Durability : This reactor is made of high-quality borosilicate glass and has superior physical and chemical properties. Its high transmittance allows for clear observation of material reactions, ensuring precise experiments. The vertical pole and frame are made of durable 304 stainless steel and aluminum alloy, ensuring compactness and solvent resistance.
• Advanced Temperature and Pressure Treatment : Within a wide temperature range (-120 ° C to 300 ° C), the controller has precise digital display. The temperature tolerance is ± 40 ℃, and it can work under positive or negative pressure (-0.1MPa). Equipped with solid feed inlet and bottom stirring design to prevent liquid accumulation.
• Electric Heating Sleeve- Half spherical electric heating jacket, insulated with non alkali glass fiber, capable of withstanding temperatures up to 842 ℉ (450 ℃). It provides uniform heating and has a solid feed inlet with no dead corners, ensuring efficient mixing and no liquid volume aggregation.
• Advanced Sealing Technology: The reactor is equipped with polytetrafluoroethylene components and special rubber composite sealing rings, which can withstand various solvents while maintaining high vacuum. This design ensures reliable sealing and ease of use, making it ideal for demanding laboratory environments.
• Application: The glass reactor is designed with single-layer glass and can perform stirred reactions. Under the set constant temperature conditions, the closed glass reactor can be stirred under normal pressure or negative pressure according to usage requirements, and the reaction solution can be refluxed and distilled. It is an ideal pilot and production equipment for modern fine chemicals, biopharmaceuticals, and new material synthesis.
